My second custom lightsaber
Page 1 2

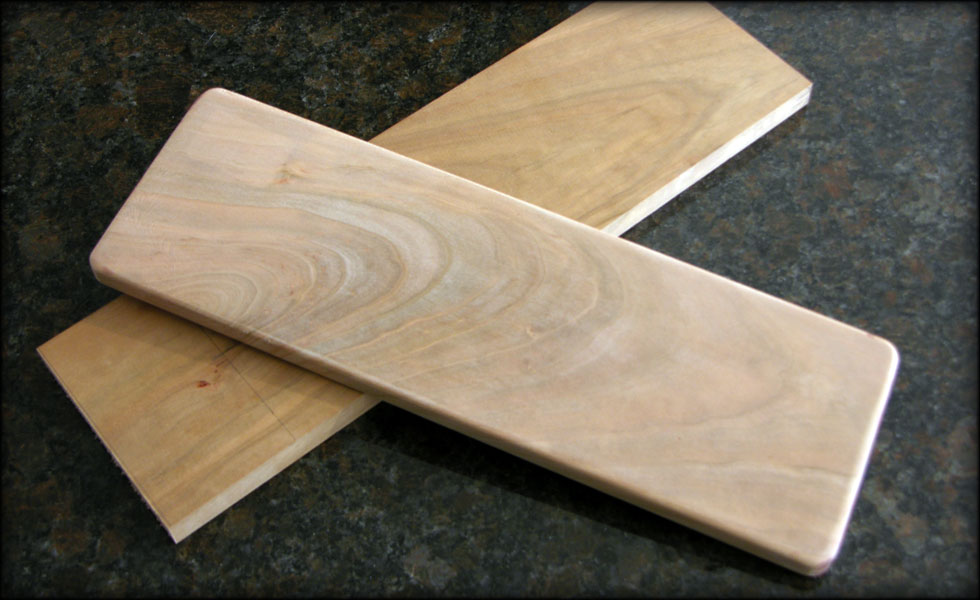

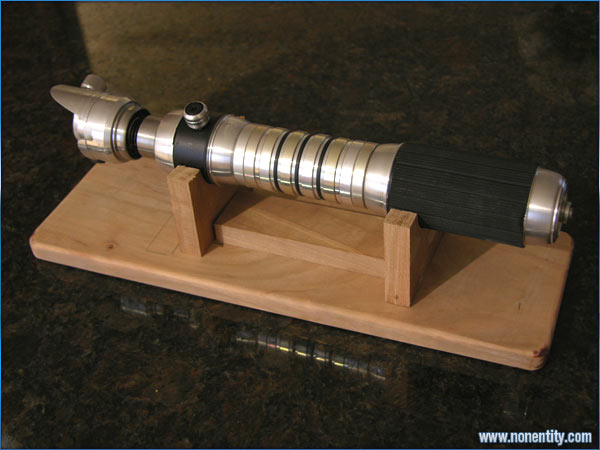

I'll be making a stand to hold the saber out of a nice piece of Cherry wood.

Most of these parts are old harddrive motors, etc that I had lying around.

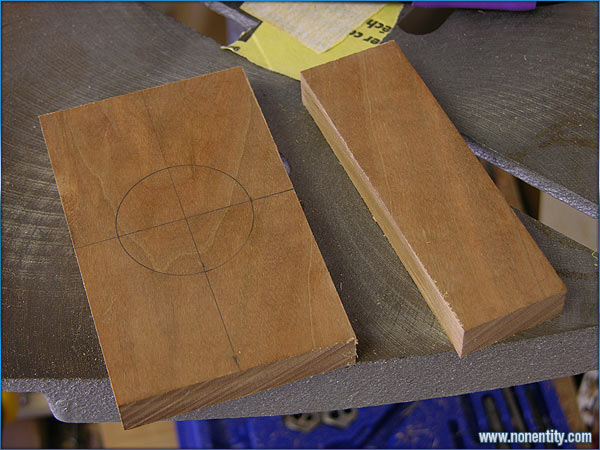

The posts seperated from the support piece

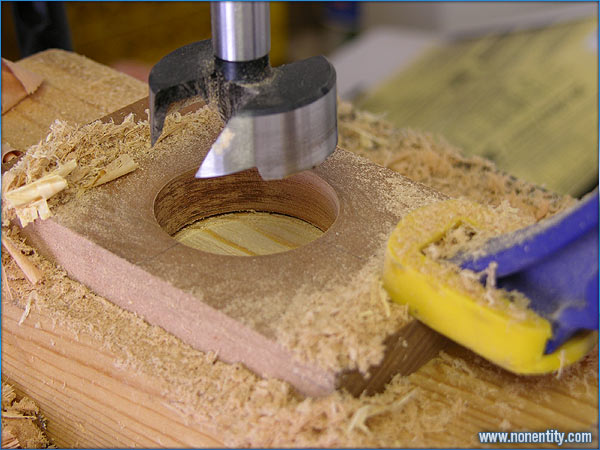

Drilling out the hole for the posts.

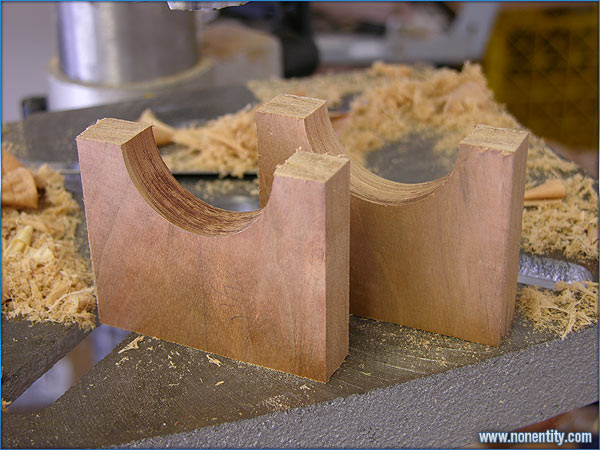

The emitter and handle slot posts.

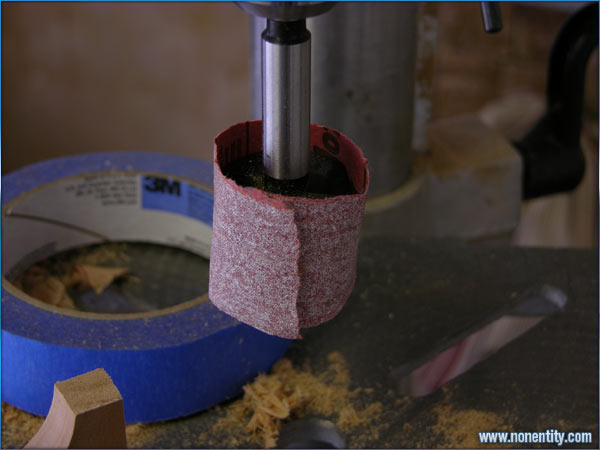

I had to wrap sandpaper around the 1 1/2 inch forstner bit to enlarge the handle slot by about 1/8 inch.

I added some red LEDs in there, the red shines against that collar piece, and has a nice glow to it.

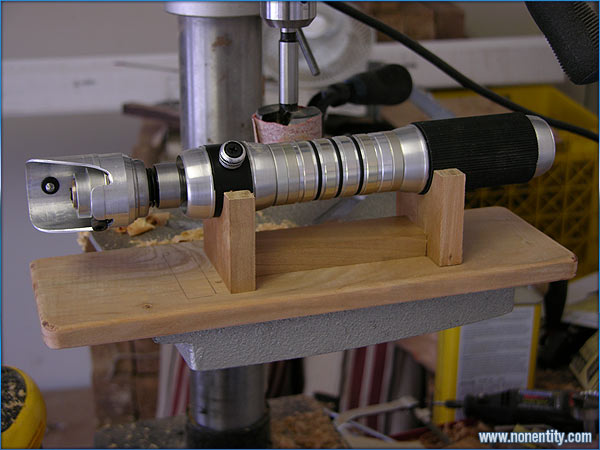

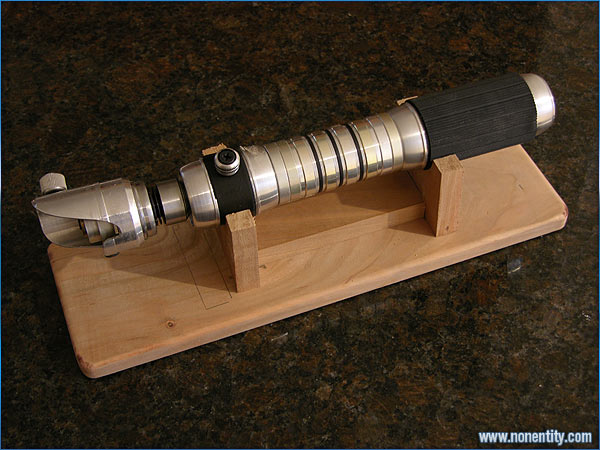

Not glued down yet, but starting to come together.

I need to radius and sand the posts, and then radius the support piece between the posts.

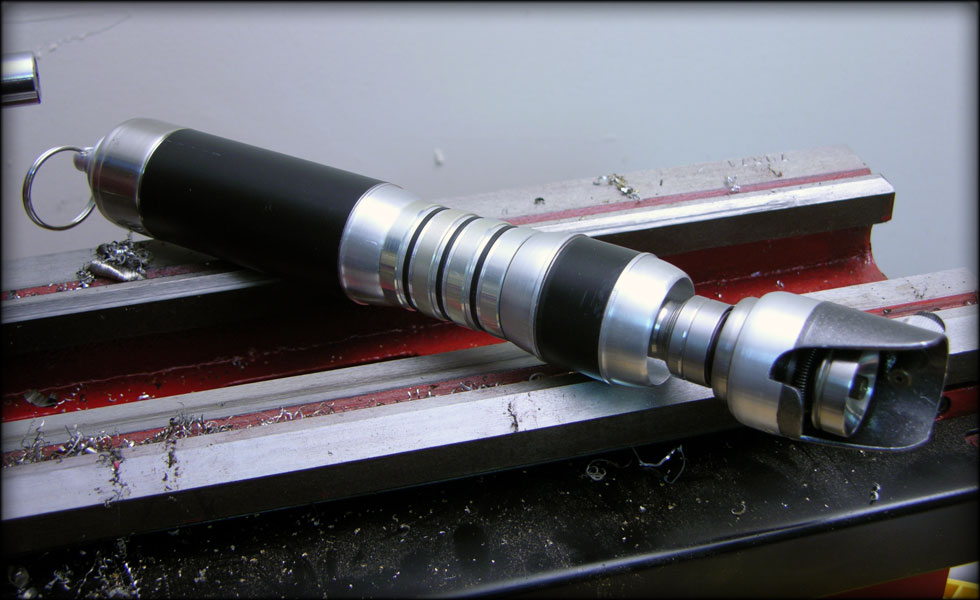

This is the design I will be going with from here on out on this guy, I think it's solid enough to stop tinkering with it.

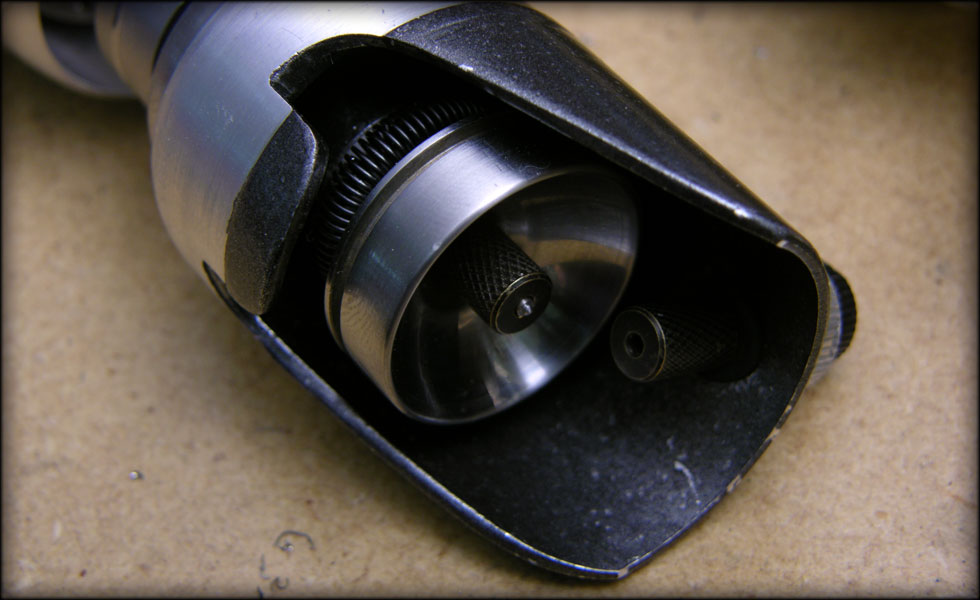

I dished out the emitter to a nice inverted dome, and added a wrapped spring around the base.
